神钢SK250-6配件

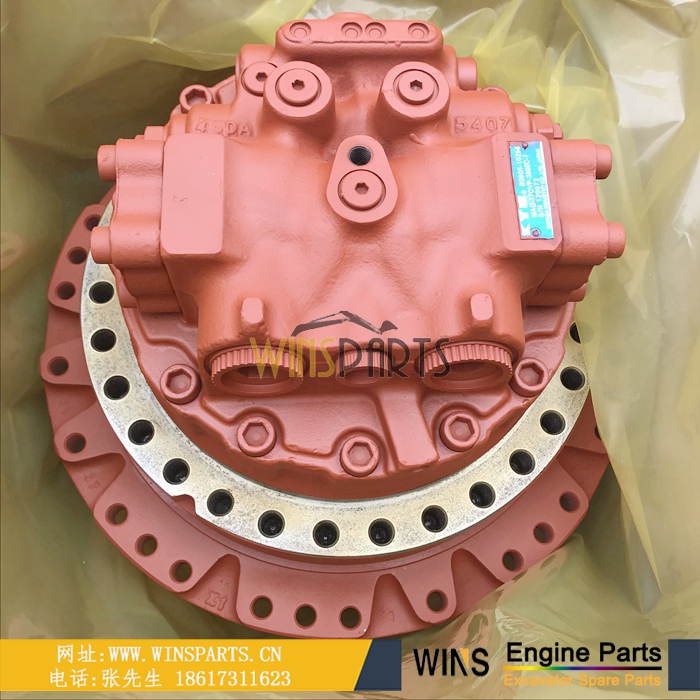

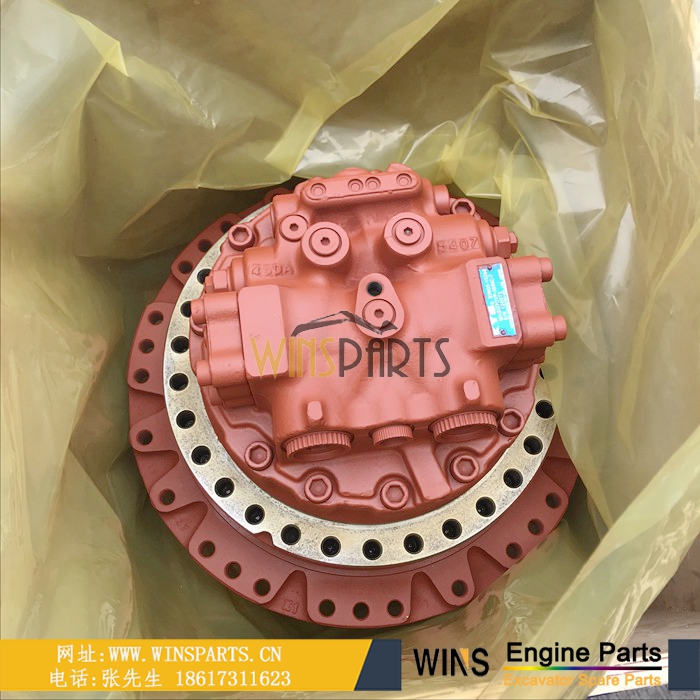

LQ15V00020F1神钢SK250-8 行走马达总成

配件号码：LQ15V00020F1
产品名称：行走马达
发动机号： J05E
适用机械：SK250-8
产品描述：日本原装进口 LQ15V00020F1 SK250-8 SK260 行走马达减速箱总成LQ15V00020F4 LQ15V00020F3 LQ15V00020F2 LQ15V00020F5 KYB MAG-170VP-3800C-7
在线订购

产品信息

LQ15V00020F1 SK250-8 SK260 行走马达 LQ15V00020F4 LQ15V00020F3 LQ15V00020F2 LQ15V00020F5 KYB MAG-170VP-3800C-7

产品零件号:

YN32W01058P1

产品名称:

减速箱齿轮

挖掘机号码:

SK200-8 ED195-8

挖掘机品牌:

KOBELCO/CATERPILLAR/HITACHI

发动机号码:

J05E J08E

发动机品牌:

ISUZU/HINO/MISTUBISHI

1	LQ15V00020R920	KIT REPAIR KIT, CONSISTS OF ITEM 98x1, 99x16 f2 only
		79X4, 80X1, 81X1, 82X1, 83X3, 84X3, 85X3, 86X3, 87X3, 88X1, 89X3, 90X1, 91X1, 94X3, 95X3, 96X4, 98X1, 99X16 f2 only
1	LQ15V00020R910	KIT REPAIR KIT, CONSISTS OF ITEM 67X2, 68X2, 69X1, 70X1, 71X1, 72X8, 73X8, 74X4, 75X4, 76X4, 77X4, 78X4
		79X4, 80X1, 81X1, 82X1, 83X3, 84X3, 85X3, 86X3, 87X3, 88X1, 89X3, 90X1, 91X1, 92X1, 93X16, 94X3, 95X3, 96X4 f1 only
1	LQ15V00020R900	REDUCER REPAIR KIT, CONSISTS OF ITEM 67X2, 68X2, 69X1, 70X1, 71X1, 72X8, 73X8, 74X4, 75X4, 76X4, 77X4, 78X4
1	LQ15V00007R800	REPAIR KIT CONSISTS OF ITEM 91X1
1	LQ15V00007R700	REPAIR KIT CONSISTS OF ITEM 70X1
1	LQ15V00020R600	BLOCK REPAIR KIT, CONSISTS OF ITEM 34X1, 35X9, 36X1, 37X1, 38X1, 39X1, 40X1, 41X1, 42X3
1	2441U792S13	CAP REPAIR KIT, CONSISTS OF ITEM 11X2, 12X2, 13X8, 14X2, 15X2, 16X2 17X2
1	LQ15V00020R400	KIT REPAIR, CONSISTS OF ITEM 2X1, 3X1, 4X2, 5X2, 6X2, 7X2, 19X8, 20X1, 21X1, 28X2, 29X4, 30X4, 31X3, 32X1
1	LQ15V00020R300	KIT REPAIR, CONSISTS OF ITEM 1X1, 45X2
1	LQ15V00020R200	KIT REPAIR, CONSISTS OF ITEM 67X2, 95X3
1	LQ15V00020R100	KIT REPAIR, CONSISTS OF ITEM 7X2, 12X2, 17X2, 24X2, 30X4, 50X1 54X1, 55X1, 60X4, 61X1
16	ZS23C10020	SCREW M10x1.50x20mm, F2 Only
1	LQ15V00020S098	PISTON COVER F2 ONLY
1	LQ15V00020S097	PISTON PISTON BREAK F2 ONLY
4	LQ15V00007S105	PIN
3	ZD12P02400	O-RING ID 23.70 ± 0.24 x OD 30mm
3	LQ15V00007S103	PLUG
16	ZS28C10016	SCREW M10x1.50x16mm, F1 Only
1	LQ15V00007S101	COVER F1 ONLY
1	NSS	NOT SERVICED SEPARATELY Plate, Thrust
1	LQ15V00020S090	GEAR Drive
3	LQ15V00007S098	SCREW
1	LQ15V00020S088	PLATE Thrust
3	LQ15V00007S096	PLATE Thrust
3	LQ15V00020S086	GEAR
3	LQ15V00020S085	BEARING ASSY Needle
3	LQ15V00020S084	RACE Inner
3	LQ15V00007S092	PLATE
1	LQ15V00020S082	RUBBER RING Holder
1	LQ15V00007S090	RING
1	LQ15V00020S080	GEAR Sun
4	LQ15V00007S088	SCREW
4	LQ15V00020S078	PLATE Thrust
4	LQ15V00007S086	DRIVEN GEAR
4	LQ15V00020S076	BEARING ASSY Needle
4	LQ15V00007S084	RACE
4	LQ15V00020S074	PLATE Thrust
8	LQ15V00007S082	SCREW
8	LQ15V00007S081	FRICTION WASHER
1	LQ15V00020S071	RUBBER RING Holder
1	NSS	NOT SERVICED SEPARATELY Shim (0.05)
1	NSS	NOT SERVICED SEPARATELY Housing
2	LQ15V00007S077	BEARING
2	LQ15V00020S067	GASKET Seal, Floating
1	NSS	NOT SERVICED SEPARATELY Plug
1	NSS	NOT SERVICED SEPARATELY Plug
1	2441U802S30	O-RING
4	ZD12P01000	O-RING ID 09.80 ± 0.17 x OD 13mm
1	LQ15V00020S059	PLATE Valve
2	YN15V00005S139	SPRING
4	YN15V00005S128	PIN
6	2441U792S130	SPRING
1	2441U983S130	O-RING
1	2441U984S42	O-RING
1	LQ15V00020S053	PISTON Brake
2	2441U983S126	PLATE Friction
3	LQ15V00020S051	PLATE Disk
1	LQ15V00020S050	GASKET Oil Seal
10	ZS23C14035	SCREW M14x2.0x35mm
1	LQ15V00020S048	PIN
1	LQ15V00007S056	BALL BEARING
1	LQ15V00007S055	BALL BEARING
2	NSS	NOT SERVICED SEPARATELY Piston Assy
2	2441U792S110	BALL
1	LQ15V00020S043	PLATE
3	2441U792S119	PIN
1	YN15V00005S117	RING
1	YN15V00005S116	SPRING
1	YN15V00005S115	SPRING SEAT
1	YN15V00005S114	SNAP RING
1	NSS	NOT SERVICED SEPARATELY Holder, Retainer
1	NSS	NOT SERVICED SEPARATELY Plate, Retainer
9	NSS	NOT SERVICED SEPARATELY Piston Assy
1	NSS	NOT SERVICED SEPARATELY Block, Cylinder
1	LQ15V00007S042	SHAFT
4	ZD12P01100	O-RING ID 10.80 ± 0.18 x OD 15mm
4	NSS	NOT SERVICED SEPARATELY PLUG
2	ZD12P00800	O-RING ID 07.80 ± 0.16 x OD 11mm
2	2441U792S19	PLUG
2	2441U792S18	SPRING
2	2436U281S37	BALL
1	NSS	NOT SERVICED SEPARATELY Plate
1	NSS	NOT SERVICED SEPARATELY Flange
	LQ15V00020F2	HYDRAULIC MOTOR
	LQ15V00020F1	HYDRAULIC MOTOR Propel

产品介绍

<a href=http://www.winsparts.cn/Engine-hino.html target='_blank'>日野</a>发动机配件日本kobelco<a href=http://www.winsparts.cn target='_blank'>挖掘机配件</a> 挖掘机发动机零件日野hino发动机配件 <a href=https://www.winsparts.cn/Engine-Isuzu.html target='_blank'>五十铃</a>发动机配件

本公司成立于1998年，一直致力于工程机械纯正零件的批发与销售公司，专注批发零售进口神钢挖掘机发动机配件销售的供应商，公司具有完善的日本进口纯正原厂渠道，一手货源，省去中间商差价；十余年来公司秉承“产品第一，优质服务，客户至上，诚实守信”的经验销售原则，以完备齐全的零配件，实惠的价格的服务于国内外广大的工程机械同行。
公司主营神钢挖掘机KOBELCO纯正配件，及日本原厂三菱重工，日野，五十铃发动机纯正原装配件：发动机缸体，缸盖，曲轴，凸轮轴，连杆，活塞缸套组件，喷油器，柴油泵，进排气门、进排气门座圈、气门油封导管、气门弹簧、等等原装发动机配件；
液压配件: 泵胆平面、配流盘、柱塞、九孔板、传动轴、先导泵、止推板、摇摆座及总成、球头、提升器等液压件；
电器件：发电机、启动马达、油门马达、空调件、电脑板、显示屏、电磁阀、传感器、感应器、熄火开关、点火开关等原厂电器件；
底盘件：链条总成、链板、螺丝、连接销、支重轮、托链轮、引导轮、驱动齿、斗齿、齿根、挖斗等底盘件
日野：J05E,J08E,P11C.
三菱: D04FR,4M40,6D16,6D22,6D24,6D31,6D34.
五十铃:4HK1,4JJ1,4LE1,4JB1,4BG1,6HK1,6WG1,6BG1,6UZ1,6BD1.
神钢挖掘机：SK60,SK75,SK130-8,SK140-8,SK200-6,-8,SK250-6,-8,SK330-6,-8,SK460-8.
欢迎广大新老客户前来洽谈，咨询！
