编号（REF）
|
数量(Qty)
|
件号(Part No)
|
品名(Part Name)
|
|
137
|
2
|
YN02C02186P1
|
SPACER
|
|
135
|
1
|
YT02C01515D1
|
TRIM PANEL TRIM - Not Illustrated
|
|
131
|
1
|
YT02C01514D2
|
SEAL SEAL - Not Illustrated
|
|
128
|
1
|
YN51C00010F2
|
DOOR ASSY. CAB, See Page 2-115, 2-117
|
|
127
|
1
|
YN02C00106P1
|
CAB ASSEMBLY
|
|
123
|
2
|
YN02C01513P1
|
SEAL RUBBER
|
|
111
|
4
|
2420T4505
|
WASHER ID 07 x OD 16 x Th 1.0mm
|
|
109
|
2
|
2420Z1227D4
|
SCREW M06x1.0x20mm
|
|
107
|
2
|
YN02C01824P1
|
PIN
|
|
106
|
2
|
YT02C01229P1
|
WASHER Star Lock -- ID 08.40 ± 0.30 x OD 16 x Th 0.6mm
|
|
105
|
2
|
ZS68C08025
|
CAP Screw -- M08x1.25x25mm
|
|
103
|
6
|
ZN13C10008
|
NUT M10x1.50mm
|
|
102
|
6
|
ZW22X10000
|
LOCK WASHER ID 10 x OD 18.4 x Th 2.5mm
|
|
101
|
6
|
ZW11X10000
|
WASHER ID 10 x OD 21 x Th 2.0mm
|
|
99
|
4
|
ZR36X00600
|
SNAP RING E-Ring -- Shaft 06mm x OD 12mm
|
|
97
|
3
|
YN02C01669P1
|
PACKING
|
|
96
|
2
|
YN02C01652P1
|
HINGE
|
|
94
|
4
|
YR11M01038D1
|
NUT
|
|
92
|
2
|
YT02C01333P1
|
WASHER SPACER
|
|
90
|
2
|
ZW16X10000
|
WASHER ID 10 x OD 21 x Th 2.0mm
|
|
89
|
2
|
ZN18F10008
|
NUT M10x1.25mm
|
|
88
|
2
|
ZM46C06020
|
BOLT M06x1.0x20mm (Incls. Washer & Lockwasher)
|
|
87
|
1
|
YN02C01825P1
|
SEAL
|
|
84
|
4
|
YN02C01876D1
|
SCREW M05x12mm Self-Taper
|
|
83
|
4
|
YN02C01292P1
|
PLUG OD 8 x 14mm Long (Nylon)
|
|
82
|
3
|
ZM27C10025
|
BOLT M10x1.50x25mm (Incls. Washer & Lockwasher)
|
|
75
|
2
|
YT02C01136P1
|
STOP
|
|
74
|
3
|
YN02C01668P1
|
RETAINER
|
|
72
|
3
|
YN17M01033D3
|
SCREW M05x10mm
|
|
70
|
6
|
ZM66C06016
|
BOLT M06x1.0x16mm (Incls. Washer & Lockwasher)
|
|
69
|
1
|
YN02C01790P1
|
HANDLE
|
|
64
|
2
|
2418Z725D3
|
WASHER ID 06 x OD 11.5 x Th 1.6mm
|
|
63
|
1
|
YN02C01821P1
|
RUBBER
|
|
61
|
2
|
YR21C01161P1
|
WASHER ID 09 x OD 22 x Th 2.3mm
|
|
59
|
2
|
YN02C01888P1
|
PACKING
|
|
57
|
1
|
YN02C01741P1
|
SEAL RUBBER
|
|
56
|
1
|
YN02C02087P1
|
WEATHERSTRIP RUBBER
|
|
54
|
1
|
YT02C01115D3
|
RUBBER SLEEVE
|
|
52
|
3
|
YN02C01812P1
|
SPACER
|
|
Feb-00
|
1
|
YN02C01794P1
|
GLASS
|
|
Feb-00
|
1
|
YN02C02082P1
|
GLASS
|
|
Feb-00
|
1
|
YN02C02136P1
|
GLASS
|
|
Feb-00
|
4
|
YT02C01390P1
|
WASHER ID 09 x OD 20 x Th 0.8mm
|
|
Feb-00
|
1
|
YN02C01787P1
|
GLASS
|
|
Feb-00
|
1
|
YN02C01567P1
|
GLASS
|
|
Feb-00
|
2
|
YT02C01261D1
|
PLATE
|
|
Feb-00
|
2
|
YN02C01763P1
|
BRACKET
|
|
Feb-00
|
2
|
ZM66C05012
|
BOLT M05x0.8x12mm (Incls. Washer & Lockwasher)
|
|
Feb-00
|
1
|
YT51C01021P1
|
HOOK
|
|
Feb-00
|
2
|
YN02C01764P1
|
RUBBER SLEEVE
|
|
Feb-00
|
1
|
YN02C01656P1
|
LOCK ASSY
|
|
35
|
2
|
YN02C01811P1
|
PLATE
|
|
33
|
1
|
YT02C01233P1
|
CAP RUBBER
|
|
32
|
2
|
YN02C01823P1
|
STOP
|
|
20
|
2
|
2420Z1227D8
|
SCREW M06x1.0x12mm
|
|
19
|
1
|
YT51C01077D1
|
SPACER
|
|
18
|
2
|
YT02C01086P1
|
SPRING GAS
|
|
17
|
2
|
YN02C01742P1
|
CATCH
|
|
16
|
2
|
YT02C01232F1
|
LOCK ASSEMBLY, Remarks: See Page 2-117
|
|
15
|
1
|
YN02C02002P1
|

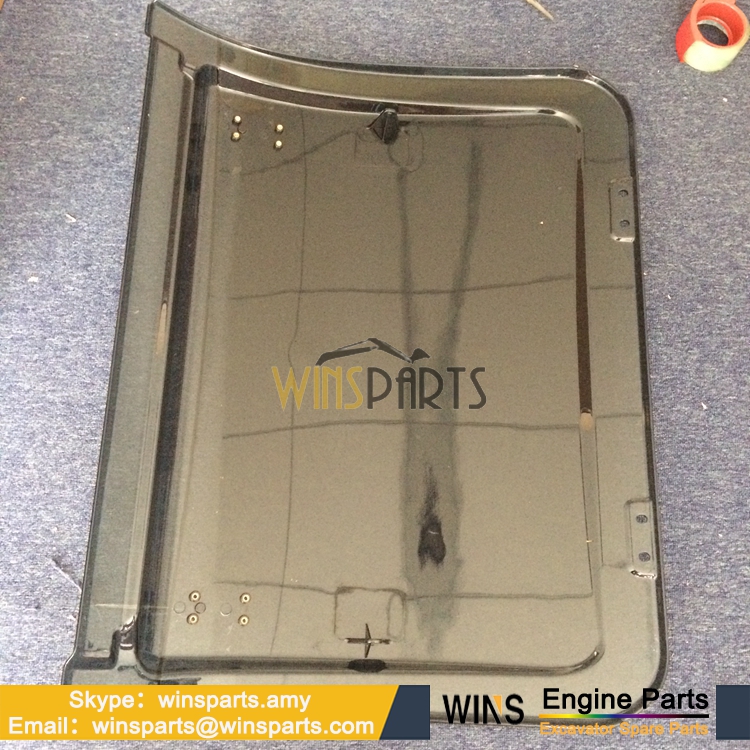

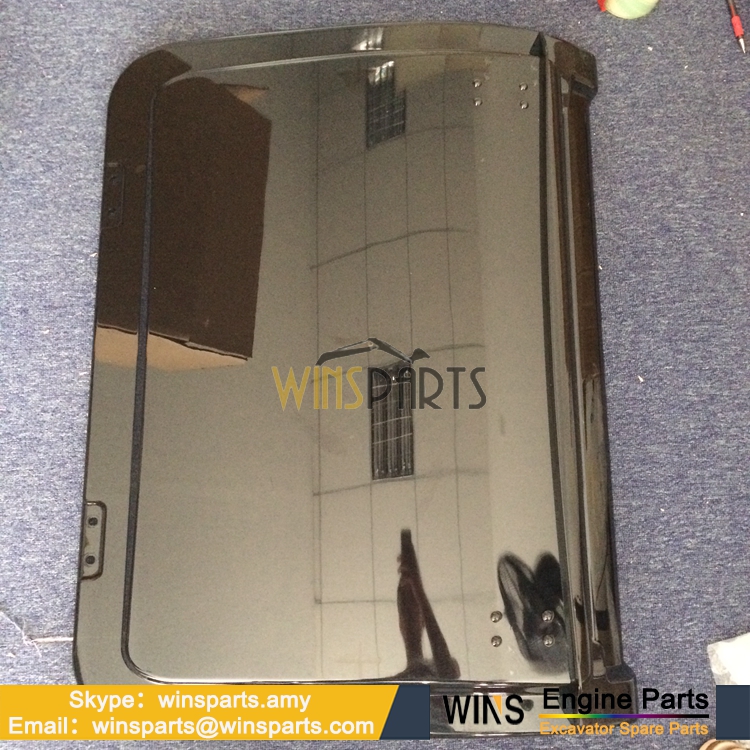

ROOF
|
|
11
|
1
|
YN02C02147P1
|
RUBBER SLEEVE
|
|
9
|
2
|
YN02C02128P1
|
STOP
|
|
8
|
2
|
YT02C01081D1
|
SEAL
|
|
7
|
2
|
YT02C01334P1
|
HOLDER
|
|
6
|
2
|
YN02C02095P1
|
STOP RUBBER
|
|
3
|
1
|
YN50C00003F1
|
WINDOW ASSY FRONT, See Page 2-113
|
|
|
1
|
YN02C00103F2
|
CAB ASSEMBLY
|
|
Feb-00
|
2
|
2418Z726D3
|
WASHER, LOCK ID 06 x OD 12.2 x Th 1.5mm
|
