产品信息
|

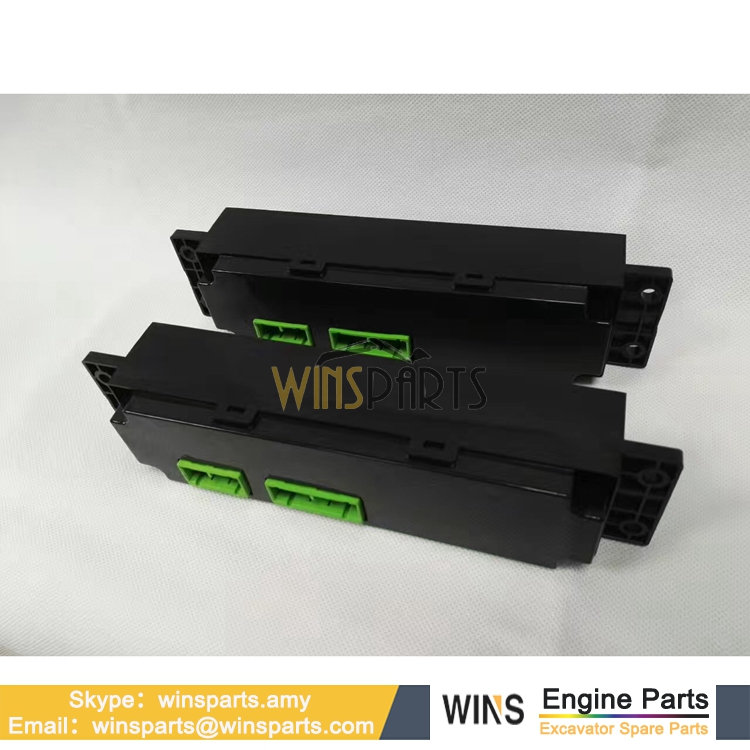

YN20M01468P1 纽荷兰神钢挖掘机空调控制面板 原厂全新进口挖机空调配件
|
|
产品零件号:
|
YN20M01468P1
|
产品名称:
|
空调控制面板
|
|
挖掘机号码:
|
SK200-8 SK350-8 SK460-8
|
挖掘机品牌:
|
KOBELCO/CATERPILLAR/HITACHI
|
|
发动机号码:
|
-
|
发动机品牌:
|
ISUZU/HINO/MISTUBISHI
|
|
|
编号（REF）
|
数量(Qty)
|
件号(Part No)
|
品名(Part Name)
|
|
92
|
1
|
YN20M00107S092
|
PLATE (For F3 ONLY)
|
|
91
|
1
|
YN20M00107S091
|
ROD (For F3 ONLY)
|
|
90
|
1
|
YN20M00107S090
|
LEVER (For F3 ONLY)
|
|
89
|
1
|
YN20M00107S089
|
LEVER (For F3 ONLY)
|
|
88
|
1
|
YN20M00107S088
|
LEVER (For F3 ONLY)
|
|
87
|
1
|
YN20M00107S087
|
BOX Case (For F3 ONLY)
|
|
86
|
1
|
YN20M00107S086
|
BOX Case (For F3 ONLY)
|
|
85
|
1
|
YN20M00107S085
|
SENSOR Thermometer (For F3 ONLY)
|
|
84
|
1
|
YN20M00107S084
|
BOX Case (For F2, F3 ONLY)
|
|
83
|
1
|
YN20M00107S083
|
BRACKET (For F2, F3 ONLY)
|
|
82
|
1
|
YN20M00107S082
|
RIGID TUBE
|
|
79
|
1
|
YN20M00107S079
|
RIGID TUBE
|
|
78
|
1
|
YN20M00107S078
|
RIGID TUBE
|
|
77
|
1
|
YN20M00107S077
|
GASKET Packing
|
|
63
|
1
|
YN20M00107S063
|
GASKET O-ring
|
|
62
|
1
|
YN20M00107S062
|
PACKING
|
|
61
|
1
|
YN20M00107S061
|
PACKING
|
|
60
|
1
|
YN20M00107S060
|
PACKING
|
|
54
|
1
|
YN20M00107S054
|
SCREW Cap
|
|
51
|
1
|
YN20M00107S051
|
PLATE
|
|
50
|
1
|
YN20M00107S050
|
ROD
|
|
49
|
1
|
YN20M00107S049
|
ROD
|
|
48
|
1
|
YN20M00107S048
|
ROD (For F1, F2 ONLY)
|
|
47
|
1
|
YN20M00107S047
|
LEVER (For F1, F2 ONLY)
|
|
46
|
1
|
YN20M00107S046
|
LEVER (For F1, F2 ONLY)
|
|
45
|
1
|
YN20M00107S045
|
LEVER
|
|
44
|
1
|
YN20M00107S044
|
LEVER (For F1, F2 ONLY)
|
|
43
|
1
|
YN20M00107S043
|
LEVER
|
|
42
|
1
|
YN20M00107S042
|
LEVER
|
|
41
|
1
|
YN20M00107S041
|
LEVER
|
|
40
|
1
|
YN20M00107S040
|
GASKET Packing
|
|
39
|
1
|
YN20M00107S039
|
GASKET Packing
|
|
38
|
1
|
YN20M00107S038
|
GUARD Damper
|
|
37
|
1
|
YN20M00107S037
|
GUARD Damper
|
|
36
|
1
|
YN20M00107S036
|
GUARD Damper
|
|
33
|
1
|
YN20M00107S033
|
CASE (For F1, F2 ONLY)
|
|
32
|
1
|
YN20M00107S032
|
CASE (For F1, F2 ONLY)
|
|
31
|
9
|
YN20M00107S031
|
SCREW Tapping
|
|
29
|
1
|
YN20M00107S029
|
THERMOSTAT (For F1,F2 ONLY)
|
|
28
|
1
|
YN20M00107S028
|
HOLDER Pipe
|
|
27
|
1
|
YN20M00107S027
|
CORE Heater
|
|
26
|
1
|
YN20M00107S026
|
HOLDER Thermister
|
|
25
|
1
|
YN20M00107S025
|
THERMOSTAT
|
|
24
|
2
|
YN20M00107S024
|
SCREW Cap
|
|
23
|
2
|
2445Z1604D5
|
O-RING
|
|
22
|
1
|
2445Z1604D4
|
O-RING
|
|
21
|
1
|
YN20M00107S021
|
VALVE
|
|
20
|
1
|
YN20M00107S020
|
EVAPORATOR
|
|
19
|
2
|
YN20M00107S019
|
RELAY
|
|
18
|
1
|
YN20M00107S018
|
ROD
|
|
17
|
1
|
YN20M00107S017
|
ROD
|
|
16
|
1
|
YN20M00107S016
|
ROD
|
|
15
|
1
|
YN20M00107S015
|
LEVER
|
|
14
|
1
|
YN20M00107S014
|
LEVER
|
|
13
|
1
|
YN20M00107S013
|
DAMPER
|
|
12
|
1
|
YN20M00107S012
|
LEVER
|
|
11
|
1
|
YN20M00107S011
|
BLOWER Motor
|
|
10
|
1
|
YN20M00107S010
|
LEVER
|
|
9
|
1
|
YN20M00107S009
|
DAMPER
|
|
8
|
1
|
YN20M00107S008
|
CASE Case (For F1 ONLY)
|
|
6
|
1
|
YN20M00107S006
|
DAMPER
|
|
5
|
1
|
YN20M00107S005
|
CASE
|
|
4
|
1
|
YN20M00107S004
|
RESISTOR
|
|
3
|
3
|
YN20M00107S003
|
ACTUATOR
|
|
2
|
1
|
YN20M00107S002
|
HARNESS
|
|
1
|
23
|
YN20M00107S001
|
SCREW Tapping
|
|
|
AR
|
YN20M00107F3
|
AIR CONDITIONING Assy, ASN YN11-48935
|
|
|
AR
|
YN20M00107F3
|
AIR CONDITIONING Assy, ASN YQ11-06357
|
|
|
AR
|
YN20M00107F2
|
AIR CONDITIONING Assy, BTW YN11-45958 & YN11-48934
|
|
|
AR
|
YN20M00107F2
|
AIR CONDITIONING Assy, BTW YQ11-06071 & YQ11-06356
|
|
|
AR
|
YN20M00107F1
|
AIR CONDITIONING Assy , BTW YN11-45001 & YN11-45957
|
|
|
AR
|
YN20M00107F1
|
AIR CONDITIONING Assy , BTW YQ11-06001 & YQ11-06070
|
|
7
|
1
|
YN20M00107S007
|
LEVER
|
|
产品介绍
本公司成立于1998年，一直致力于工程机械纯正零件的批发与销售公司，专注批发零售进口神钢挖掘机发动机配件销售的供应商，公司具有完善的日本进口纯正原厂渠道，一手货源，省去中间商差价；十余年来公司秉承“产品第一，优质服务，客户至上，诚实守信”的经验销售原则，以完备齐全的零配件，实惠的价格的服务于国内外广大的工程机械同行。
公司主营神钢挖掘机KOBELCO纯正配件，及日本原厂三菱重工，日野，五十铃发动机纯正原装配件：发动机缸体，缸盖，曲轴，凸轮轴，连杆，活塞缸套组件，喷油器，柴油泵，进排气门、进排气门座圈、气门油封导管、气门弹簧、等等原装发动机配件；
液压配件: 泵胆平面、配流盘、柱塞、九孔板、传动轴、先导泵、止推板、摇摆座及总成、球头、提升器等液压件；
电器件：发电机、启动马达、油门马达、空调件、电脑板、显示屏、电磁阀、传感器、感应器、熄火开关、点火开关等原厂电器件；
底盘件：链条总成、链板、螺丝、连接销、支重轮、托链轮、引导轮、驱动齿、斗齿、齿根、挖斗等底盘件
日野：J05E,J08E,P11C.
三菱: D04FR,4M40,6D16,6D22,6D24,6D31,6D34.
五十铃:4HK1,4JJ1,4LE1,4JB1,4BG1,6HK1,6WG1,6BG1,6UZ1,6BD1.
神钢挖掘机：SK60,SK75,SK130-8,SK140-8,SK200-6,-8,SK250-6,-8,SK330-6,-8,SK460-8.
欢迎广大新老客户前来洽谈，咨询！
